CANOE PADDLE

ERBI has developed and manufactures unique  canoe paddles under the brand BionicaONE. The models are designed for both children and beginners, as well as professionals and masters. Here you can learn about their features and ask any questions you may have.

Composite carbon standard technology

For children

The BionicaONE children paddle provides a universal setting for both the right and left hand. The design of the blade was borrowed from nature. It is based on the anatomy of a duck's paw. This ensures the stability of the paddle from side to side during rowing, as well as efficiency in the longitudinal direction when the body of the canoe is pulled up to the athlete's standing position.

Structural coating black or white
- universal blade sides
- lockable handle adjustment
- 40% carbon



Paddle parametrs
Materials:    40 % carbon+ 60% fiber glass
Maximum Length:   140-160 cm
Handle height adjustment                      10-15 cm
Weight:   500 gr-650gr
Shaft Stiffness     2.7-2.8 mm
Blade parametrs
Materials:    40% carbon
Lenght:   54-58 cm
Width:   20,5 cm
The angle of the blade       3°



Table Work Area Surface

By the ratio of length to width in cm2

 Blade contour



Lenght (cm)

M

54

width (cm)

20.5

896

Working area surface (cm²)

BLADE cross sections universal

Plastic lock

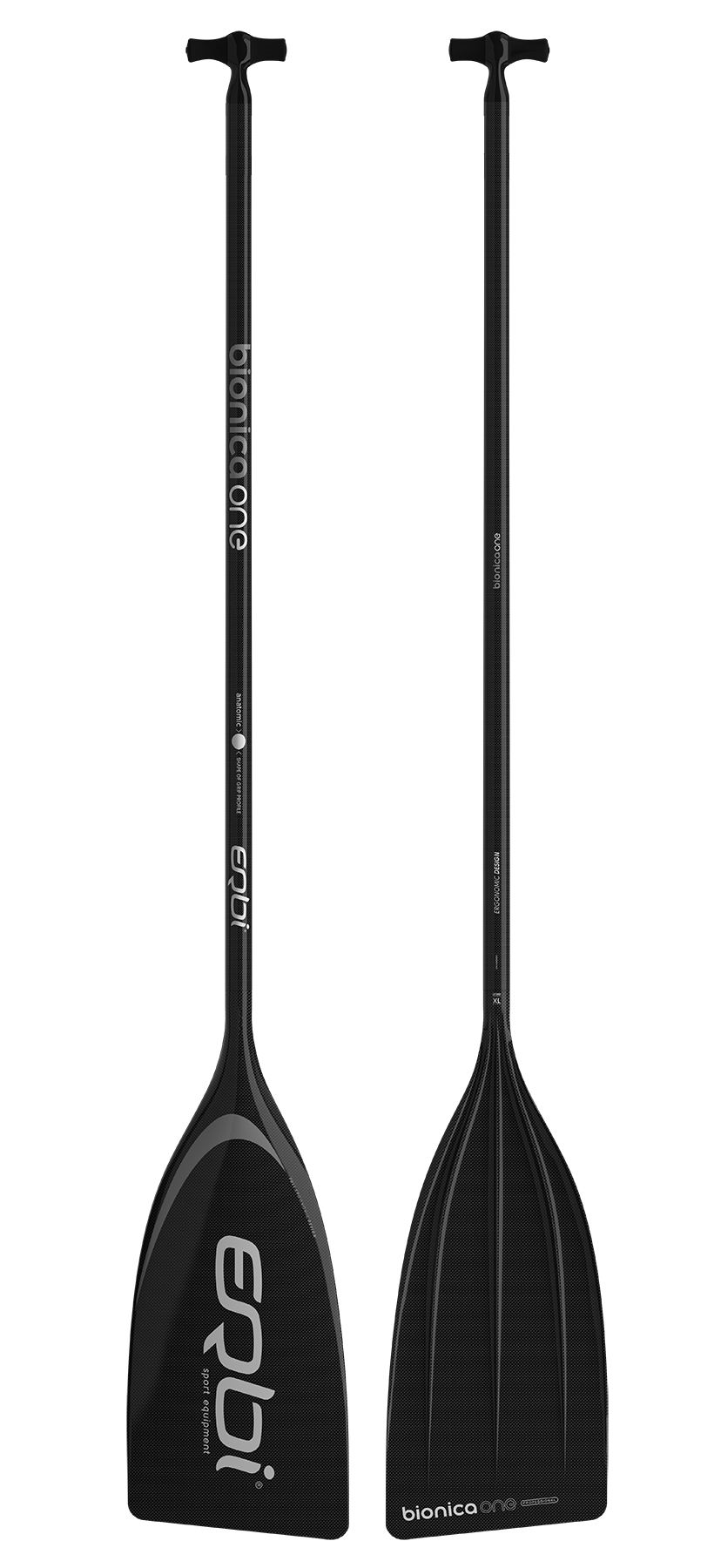

Composite carbon standard technology

Standard

BionicaONE provides for right-handed as well as left-handed customization. The blade design has been borrowed from nature. It is based on the anatomy of the duck paw. It provides for the paddle side-to-side stability during paddling, as well as lengthwise efficiency when the hull of the canoe is dragged to the athlete’s standing point.

Structural coating black or white
- Left / Right blade sides
- lockable handle adjustment
- 70% carbo

Paddle parametrs
Materials:  70 % carbon+ 30% fiber glass
Lenght:   160-190 cm
Weight:   700 gr-880gr
Shaft Stiffness  1.8-1.9 mm/ 2.0-2.3 mm
Blade parametrs
Materials:  70% carbon
Lenght:   54-59.5 cm
width:   22.5-25.5 cm



Table Work Area Surface

By the ratio of length to width in cm2

Blade contour

Lenght  (cm)

M

L

XL

54

56

58

width (cm)

 25.5

1060

1110

1160

 24.5

1030

1080

1130

 23.5

1000

1045

1090

 22.5

965

1010

1055



Working area surface (cm²)

BLADE cross sections universal

Alluminium lock

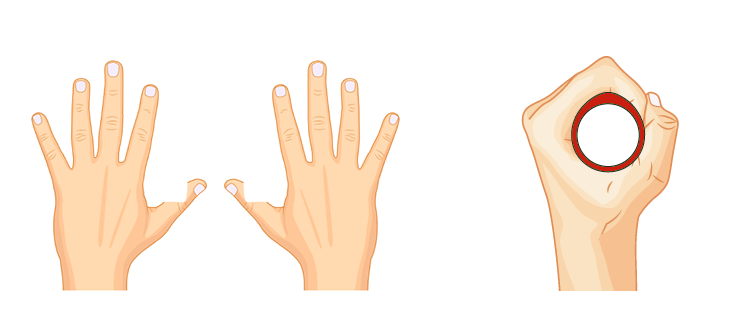

Comfortable grip position
Four types of ergonomic handles“Оld” “Big” “Small” “Universal”

Composite carbon standard technology

PROFESSIONAL

BionicaONE provides for right-handed as well as left-handed customization. The blade design has been borrowed from nature. It is based on the anatomy of the duck paw. It provides for the paddle side-to-side stability during paddling, as well as lengthwise efficiency when the hull of the canoe is dragged to the athlete’s standing point.

Structural coating black or white
- Left / Right blade sides
- lockable handle adjustment
- 70% carbo



Paddle parametrs
Materials:  100% carbon
Lenght:   160-190 cm
Weight:   700 gr-850 gr
Shaft Stiffness 1.4-1.5/1.8-1.9 mm
Blade parametrs
Materials:  100% carbon
Lenght:   54-59.5 cm
width:   22.5-25.5 cm



Table Work Area Surface

By the ratio of length to width in cm2

Blade contour

Lenght  (cm)

M

L

XL

54

56

58

width (cm)

 25.5

1060

1110

1160

 24.5

1030

1080

1130

 23.5

1000

1045

1090

 22.5

965

1010

1055



Working area surface (cm²)

BLADE cross sections universal

Comfortable grip position
Four types of ergonomic handles“Оld” “Big” “Small” “Universal”

High Modulus Carbon technology

PROFESSIONAL PLUS

BionicaONE provides for right-handed as well as left-handed customization. The blade design has been borrowed from nature. It is based on the anatomy of the duck paw. It provides for the paddle side-to-side stability during paddling, as well as lengthwise efficiency when the hull of the canoe is dragged to the athlete’s standing point.

- Customized RAL color
- Left / Right blade sides
- lockable handle adjustment
- 100% carbon High Modulus Carbon technology

Paddle parametrs
Materials:  100% carbon
Lenght:   160-190 cm
Weight:   700 gr-880 gr
Shaft Stiffness  1.4-1.5/1.8-1.9 mm
Blade parametrs
Materials:  100% carbon
Lenght:   54-59.5 cm
Weight:   22.5-25.5 cm



Table Work Area Surface

By the ratio of length to width in cm2

Blade contour

Lenght  (cm)

M

L

XL

54

56

58

width (cm)

 25.5

1060

1110

1160

 24.5

1030

1080

1130

 23.5

1000

1045

1090

 22.5

965

1010

1055



Working area surface (cm²)

BLADE cross sections universal

Comfortable grip position
Four types of ergonomic handles“Оld” “Big” “Small” “Universal”

High Modulus Carbon technology

PROFESSIONAL PLUS

About the RAL color system
RAL is an European color matching system which defines colors for paint, coatings and plastics. The RAL Classic colors have a 4-digit number in combination with the letters 'RAL' (e.g. RAL 1028).
You can view the number of the desired color on this site:

https://www.ralcolorchart.com/ral-classic

High Modulus Carbon technology

PROFESSIONAL PLUS

BionicaONE provides for right-handed as well as left-handed customization. The blade design has been borrowed from nature. It is based on the anatomy of the duck paw. It provides for the paddle side-to-side stability during paddling, as well as lengthwise efficiency when the hull of the canoe is dragged to the athlete’s standing point.

- Customized RAL color
- Left / Right blade sides
- lockable handle adjustment
- 100% carbon High Modulus Carbon technology

Paddle parametrs
Materials:  100% carbon
Lenght:   160-190 cm
Weight:   700 gr-880 gr
Shaft Stiffness  1.4-1.5/1.8-1.9 mm
Blade parametrs
Materials:  100% carbon
Lenght:   54-59.5 cm
Weight:   22.5-25.5 cm



Table Work Area Surface

By the ratio of length to width in cm2

Blade contour

Lenght  (cm)

M

L

XL

54

56

58

width (cm)

 25.5

1060

1110

1160

 24.5

1030

1080

1130

 23.5

1000

1045

1090

 22.5

965

1010

1055



Working area surface (cm²)

BLADE cross sections universal

Comfortable grip position
Four types of ergonomic handles“Оld” “Big” “Small” “Universal”

Examples of design with national flag

For an individual order, please contact by mail: erbi.carbon@mail.ru
